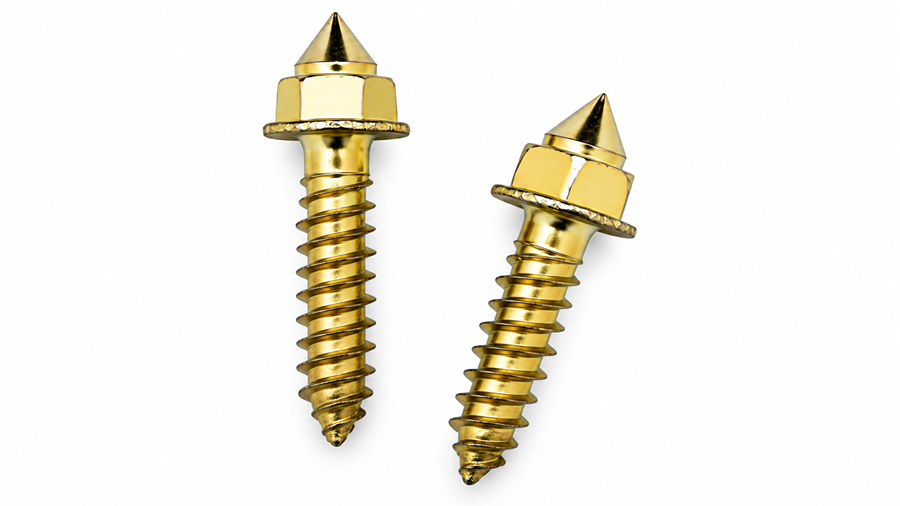

When Should You Replace Carbide Snowmobile Studs? Key Wear Signs to Check



Studs rarely announce that they're finished. A stud that snaps off or disappears is obvious, but that's not the common failure. What usually happens is that the carbide tip slowly rounds over, grip fades a little each ride, and you adjust your riding without consciously registering why.

By February you're braking earlier, carrying less speed into corners, and putting it down to conditions. The conditions are the same. The studs aren't.

There's a second failure mode that matters more on a sled than on any other studded product: hardware that works loose. A stud that shifts or backs out doesn't just stop gripping; it can contact the tunnel or heat exchanger, which turns a cheap part into an expensive repair. That's why snowmobile stud inspection covers both the carbide and everything holding it in place.

Here's what to look for, how to check it properly, and what to fit when it's time. All INS Products snowmobile studs use solid tungsten carbide tips and are proudly made in the USA.





The Three Ways Snowmobile Studs Fail

Knowing the failure modes tells you what to look for. There are three, and they need different responses.

Tip wear - the slow one

The carbide rounds off. The stud is still firmly installed and looks fine at a glance, but the point that used to penetrate ice now rides across it. This is the most common failure and the hardest to notice because nothing visibly changes from one ride to the next.

Retention failure - the dangerous one

The stud loosens, backs out, tilts, or begins pulling through the lug. On push-through installations, this can mean the backer plate or nut has worked loose. A stud that has shifted position is no longer where your tunnel clearance was calculated for, and that's how tunnels and heat exchangers get damaged.

Track failure - the terminal one

The lug rubber around the stud tears, cracks, or degrades to the point where it can no longer hold hardware. When this happens, replacing studs won't fix anything. The track is the problem.

Seven Wear Signs to Check

1. Carbide tips have gone from pointed to rounded

The primary indicator. A new tip has defined geometry that bites into hard ice. When worn, it domes over and skates. Keep one new stud from your original order as a reference; it's the most useful diagnostic tool you can own, and comparison is far more reliable than memory.

2. Carbide no longer stands proud of the lug

The tip has to protrude past the rubber to reach the ice. If wear has brought it to level with the lug surface, the stud no longer contributes, regardless of how securely it's installed.

3. Studs turn, tilt, or have backed out

Check each one. Anything that rotates freely, sits at an angle, or stands higher than its neighbors has lost retention. On a sled, this is urgent, not cosmetic  a shifted stud changes your tunnel clearance.

4. Loose nuts or damaged backer plates

On Hornets and Fatheads, inspect the inside of the track. Nuts that have backed off, plates that are bent, corroded, or seated unevenly all indicate the installation is failing. Backer plates are what stop the stud from pulling through the lug  if they're compromised, the stud is on its way out.

5. Torn or cracked lug rubber around the stud

Look at the rubber immediately surrounding each head. Tearing, splitting, or elongated holes mean the lug is losing its grip on the hardware. Fresh studs in torn holes won't hold.

6. Marks on the tunnel or heat exchanger

Scoring, scratching, or bright rub marks mean something has been making contact. Find the cause before riding further; this is the failure mode that turns a stud problem into a repair bill.

7. Grip has changed on trails you know

The subjective sign, and often the earliest. If a corner you take every year now feels loose, or you're braking earlier than you used to on familiar ice, check the track before blaming the conditions.

How to Inspect Properly

Twenty minutes, twice a season, plus a check before any trip where ice is likely. Spring pull-down and fall prep are the natural times.

Clean first. Packed snow, ice, and road grit hide exactly the wear you're looking for. Get the track clean and dry, and work in good light; wear that's invisible in a dim garage is obvious on a bright bench.

Lift the rear so the track turns freely and work through it methodically rather than spot-checking. Problems cluster, and the pattern tells you something.

•        Tip geometry - pointed or domed? Compare against your reference stud.

•        Protrusion - does carbide clearly stand above the lug?

•        Tightness - test each stud; anything that turns is suspect.

•        Seating - head flush and flat, stud perpendicular to the lug.

•        Lug rubber - tearing, cracking, or elongation around the head.

•        Inside the track - nuts tight, backer plates flat and sound.

•        Tunnel and heat exchanger  any sign of contact.

•        Tunnel protectors - still in place and intact.



Note where the wear is. Studs wearing faster on one side, or concentrated in one section of track, usually points to something specific: alignment, riding style, or a track issue worth investigating rather than just re-studding.

 What Wears Carbide Faster

Wear rate varies enormously between riders, which is why fixed replacement intervals aren't much use. The drivers:

•        Road and pavement crossings are by a wide margin the biggest factor. Bare asphalt and road grit wear carbide far faster than ice does.

•        Sand and gravel on the trail: abrasive and unavoidable near road crossings and early-season trails.

•        Hours on hard ice versus soft snow: ice riding is what studs are for, and it uses them.

•        Low stud count: fewer studs means each carries more load and wears faster.

•        Riding style: aggressive braking and hard cornering load the carbide more.

•        Machine weight and rider load: more mass, more pressure per stud.



The practical point: minimize unnecessary pavement miles. Most avoidable stud wear happens off the snow.

So How Long Should They Last?

Carbide-tipped studs last substantially longer than softer stud materials; that's why carbide is used. Tungsten carbide resists the abrasion that rounds a steel tip within a season, and multiple seasons of usable life is a realistic expectation.

But a specific figure in hours or seasons isn't honest, because the variables above swamp any average. A rider crossing pavement daily on an ice-heavy trail system will wear studs in a fraction of the time it takes someone riding soft snow on a groomed system twenty days a year.

Inspect rather than schedule. Check at spring pull-down, again at fall prep, and before any trip where you'll be on ice. Replace based on what you see.

One note on warranty: the INS Products limited warranty covers defects in materials and workmanship for one year. Normal wear from riding isn't a defect; it's the product doing its job. A failure that looks like a manufacturing issue rather than wear is worth a call to 585-678-9106.

 Replace a Few, or Do the Whole Track?

Replace individually when you've lost one or two studs, the rest still have good tip geometry, and the lug rubber is sound throughout. Reasonable mid-season fix.

Replace the full set when tips are rounding generally, you're finding multiple loose studs, you've already done several piecemeal replacements, or you're heading into a season where you need to trust the sled on ice.

Why the full set is usually right: mixing fresh studs with worn ones produces uneven grip across the track. The new ones bite, the old ones skate, and the machine's behavior under braking and cornering becomes harder to predict. Uniform traction beats maximum traction in patches.

There's also a practical argument. Studding a track is real work. Doing it once properly costs less in time than doing it twice in halves.

 Check the Track and Hardware Too



If you're re-drilling for push-through studs, use a proper track cutter. A TK-11 produces clean holes, and torn or oversized holes compromise retention from the start. Full guidance is on the INS Products Installation Instructions page.

Choosing Your Replacements

Re-studding is a natural moment to reconsider which style you're running, particularly if you inherited a push-through setup you didn't choose.



If your current holes are torn, moving to screw-in Icemasters into sound lug material is often cleaner than re-using compromised push-through holes. Whichever you choose, match thread or overall length to your lug height; don't assume the previous owner got it right. Call 585-678-9106 if you're between sizes.





Frequently Asked Questions

How do I know if my snowmobile studs are worn out?

Check tip geometry first: a new carbide tip is pointed; a worn one is rounded and domed. Then confirm the carbide still stands above the lug, test each stud for tightness, and inspect the lug rubber and interior hardware. Keeping one new stud as a comparison reference makes the assessment much easier.

How often should snowmobile studs be replaced?

Based on inspection rather than a schedule. Wear rate varies enormously with pavement crossings, ice hours, stud count, and riding style. Inspect at spring pull-down, at fall prep, and before any ice-heavy trip.

Can I replace just a few studs?

Yes for one or two, provided the lug rubber is sound. But mixing new and worn studs creates uneven grip across the track, which makes braking and cornering less predictable. If tips are rounding generally, do the full set.

What wears carbide studs fastest?

Road and pavement crossings, by a wide margin. Bare asphalt and road grit are far harder on carbide than ice. Sand and gravel near crossings do similar damage. Minimizing unnecessary pavement miles meaningfully extends stud life.

Can I reuse the same holes when replacing push-through studs?

Often yes, if the rubber around the hole is intact. If the previous stud tore or elongated the hole, new hardware won't hold. Either reposition into sound material or treat it as a sign the track needs replacing.

My studs keep coming loose. What's wrong?

Usually one of three things: the lug rubber is damaged or worn; the studs were overdriven during installation, crushing the rubber; or push-through studs are running without adequate backer plates. Diagnose the cause before re-studding, or the new studs will do the same thing.

Does the warranty cover worn studs?

The INS Products limited warranty covers defects in materials and workmanship for one year. Normal wear from riding isn't covered, as that's part of the expected service life. A failure that looks like a manufacturing defect is worth a call.

 Final Thoughts: Check in the Fall, Not in February

Worn studs give no warning. They look the same as the day you installed them while quietly delivering less grip every ride. The fix is a twenty-minute inspection twice a season and a willingness to re-stud when tips start rounding.

Keep one new stud in the toolbox as a reference. Compare against it. When the difference is obvious, order before the season rather than during it.

INS Products carbide snowmobile studs: solid tungsten carbide tips, Hold-Tite™ threads, and proudly made in the USA.
