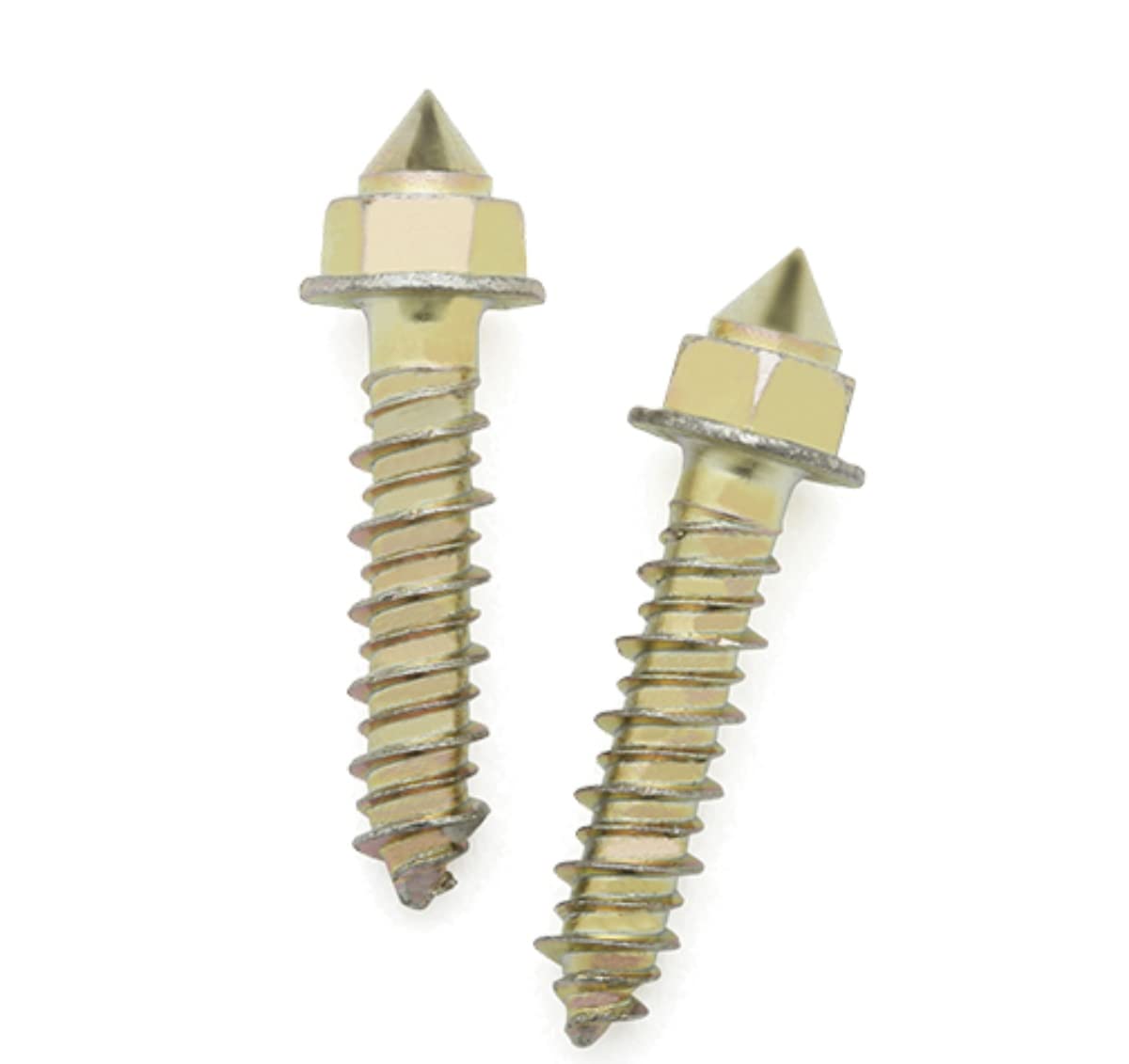

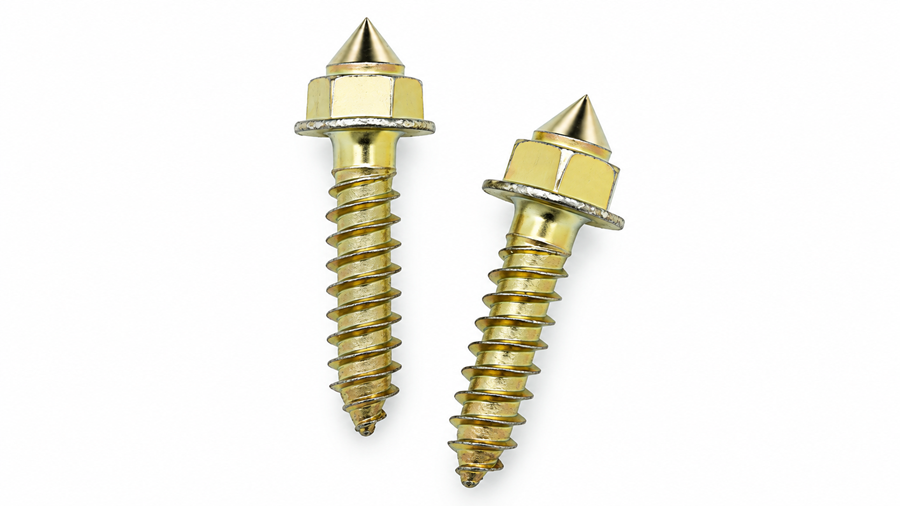

Screw-In Ice Studs for Tires: Installation Depth, Placement and Spacing Guide

Screw-in carbide studs are one of the few traction upgrades that do exactly what they claim, provided they're installed correctly. And "correctly" comes down to three variables: how deep the stud sits, where it sits on the tread, and how far apart the studs are.

Get those three right, and a studded tire holds on ice with a consistency chains struggle to match. Get them wrong, and you'll see studs working loose, an uneven grip across the tread, or traction that never quite arrives, even with a full install.

This guide walks through each variable in order, using INS Products screw-in carbide studs as the reference. No pre-drilling, Hold-Tite™ threads, and proudly made in the USA.

The Three Variables That Decide Whether Studs Work

Most installation problems trace back to one of three things, and they're worth naming clearly because they fail in different ways.

Depth determines whether the stud stays put. Too shallow, and the threads don't have enough rubber engaged to resist the loads a working machine puts through them. Too deep, and you risk bottoming out against the tire's internal structure or compressing the lug so the head doesn't seat cleanly.

Placement determines whether the stud contacts the ground at all. A carbide tip sitting in a part of the tread that never bears load contributes nothing. Placement is about putting carbide where the tire actually meets the surface.

Spacing determines whether traction is continuous. Studs too far apart create gaps where the tire has no bite as it rotates. Too close together, and you're spending money on redundant coverage while weakening the lug with excessive perforation.

All three are set at install time and are difficult to change afterward. Worth thinking through once, properly.

Depth Starts With Lug Height, Not Guesswork

Installation depth isn't something you set by feel  it's determined by selecting the right thread length for your tire's lug height. Choose correctly, and depth takes care of itself.

Measuring lug height:

1. Park the machine on level ground so the tire sits unloaded.

2. Choose a lug in the area you intend to stud, toward the center of the tread width.

3. Rest a ruler or caliper flat against the base of the lug, where it meets the tire carcass surface.

4. Measure straight up to the flat top of the lug, keeping the ruler perpendicular. Angling it inflates the reading.

5. Check two or three additional lugs to confirm consistency.

You want the lug's own height, not the overall tire tread depth as advertised, and not the height of any sculpted or angled edge.

Then match a thread length to it:

All Gripmasters® from $185.00. The rule: select the thread length that matches your measured lug height without exceeding it. The threads need enough rubber to grip firmly, but the stud shouldn't bottom out or push through the lug base.

If you measure between two sizes, call before ordering rather than rounding up on assumption. Rounding up feels like the conservative choice for grip, but not for fitment.

How Deep Should the Stud Actually Sit?

The target is straightforward: the stud drives into the lug until the flat head seats flush against the lug surface, and no further.

That flush-seated position does two things. It embeds the full threaded length in rubber, which resists pull-out under load. And it sets protrusion automatically with Gripmasters®; the carbide head stands 5/16" above the tread once properly seated, regardless of which thread length you selected. That protrusion figure is engineered into the head geometry, not something you dial in by driving deeper or backing off.

Signs the depth is right: the head sits flat against the lug with no gap, the stud stands perpendicular to the tread surface, and the carbide head height looks consistent across every stud you've installed.

Signs it's wrong: a visible gap under the head means it isn't fully seated. A stud that sits at an angle usually means it entered off-perpendicular. Rubber bulging or deforming around the head means it's been overdriven.

Do not overtighten. Once the head is flush, stop. Continuing to drive compresses and tears the lug rubber, weakening the very material that's supposed to hold the stud in place. Over-driving is a more common cause of loose studs than under-driving.

Placement: Put Carbide Where the Load Is

A stud only generates traction where the tire contacts the ground under load. Placement is about identifying those zones and concentrating carbide there.

Prioritize the load-bearing tread. The center portion of the tread width carries the majority of contact on most equipment tires. Studs placed here do the most work per stud.

Include the outer tread for lateral hold. Studs positioned toward the shoulder area contribute side-to-side stability, which matters on slopes, ramps, and cambered surfaces. Machines that lose traction sideways usually have limited outer-tread coverage. On skid steers in particular, where a compact wheelbase carries significant weight, lateral bite is worth deliberate attention.

Distribute across the rotation. Studs should be spread around the tire's circumference so that at any point in the rotation, carbide is in contact. Clustering studs in one arc leaves dead zones.

Balance across all tires. Whatever pattern you choose, apply it consistently to every studded tire. Uneven coverage between tires produces uneven traction and unpredictable handling under power.

Stay within the lug. Each stud should be centered in the lug with adequate rubber all around it. Studs placed near a lug edge have less material holding them and are more likely to work loose or tear out.

Spacing: How Far Apart and How Many

Spacing follows a simple principle: enough studs, evenly distributed, so that traction remains continuous through rotation without perforating the lug more than necessary.

This is where the Gripmasters® head design changes the math. Because it uses the industry's largest carbide head, each stud delivers a wider contact point than conventional studs. That means comparable traction with up to 50% fewer studs than traditional traction methods, lower cost per machine, and less lug perforation for the same result.

Practical spacing guidance:

• Space studs evenly rather than in tight clusters; even distribution beats concentration

• Keep spacing consistent around the circumference so grip doesn't pulse as the tire turns

• Leave adequate rubber between adjacent studs; crowding weakens the lug

• Match the pattern on all studded tires

The total number of studs depends on tire size, lug pattern, machine weight, and the conditions you work in. A compact skid-steer tire and a large wheel loader tire need very different counts. Rather than guessing, contact INS Products with your machine and tire details for a recommendation. The team does this regularly, and it's a short conversation.

Call 585-678-9106 or email carbide@insproducts.net. Custom quantities are available for fleet and commercial orders.

→ Shop Gripmasters® All-Terrain Carbide Studs → Shop Roadmasters® for Paved Surfaces

Matching the Stud Line to Your Surface

Depth, placement, and spacing all assume you've started with the right product. INS Products makes three screw-in lines for tires and tracks, separated by operating surface.

A note on Roadmasters®: they're designed for icy driveways, parking lots, and local roads, not for high-speed highway use. Match the product to how the vehicle actually operates.

Traction Kings® use a substantially larger carbide head (3/4" wide × 5/8" high) for heavy-duty equipment and military applications, available in 50-, 100-, and 250-packs. Check current availability before planning around them.

Installation, Step by Step

1. Inspect the tire. Confirm the lugs are in good condition, not torn, cracked, chunked, or excessively worn. Studs won't hold in compromised rubber.

2. Measure lug height and confirm you have the correct thread length.

3. Mark your pattern before driving anything. Marking first produces even spacing; installing by eye creates clusters and gaps.

4. Drive each stud straight in using a hex-head driver or the included installation tool. Hold-Tite™ threads self-tap into the lug rubber; no pre-drilling required.

5. Seat the head flush against the lug surface, then stop.

6. Inspect the full set. Every stud straight, fully seated, protruding evenly.

7. Run at low speed on a safe surface, then re-inspect before returning to full operation.

For complete guidance, see the INS Products Installation Instructions page.

Requirements and Cautions

BEFORE YOU INSTALL

• Inspect lug condition first. Worn, cracked, chunked, or dry-rotted lugs will not retain studs regardless of correct depth and spacing.

• Never exceed your measured lug height when selecting thread length.

• Do not overdrive. Flush is the target. Past flush damages the rubber that holds the stud.

• Keep studs perpendicular. Angled studs bite unevenly and load the lug asymmetrically.

• Match Roadmasters® to paved use only; they are not intended for high-speed highway operation.

• Re-inspect after the first work cycle, then periodically through the season. Catching one loose stud early is easier than replacing several later.

• Avoid extended running on bare pavement with all-terrain studs. It wears carbide for no traction benefit.

Five Common Installation Mistakes

1. Skipping the lug measurement. Ordering by machine model rather than by measured lug height is how the wrong thread length ends up on the shelf.

2. Installing without marking a pattern. Eyeballing placement reliably results in uneven spacing and dead zones during rotation.

3. Over-driving the stud. The most common cause of studs working loose is compressed, damaged lug rubber from driving past flush.

4. Studding worn tires. If the lugs are chunked or cracked, no stud will hold. Address the tire first.

5. Uneven coverage between tires. Different tire patterns produce handling that doesn't match the operator's expectations under power.

Frequently Asked Questions

How deep should screw-in tire studs be installed?

Deep enough that the flat head seats flush against the lug surface, and no deeper. Selecting the correct thread length for your lug height automatically sets the depth. The stud is designed to seat flush with the carbide head, standing proud of the tread.

How far above the tread should the stud protrude?

With Gripmasters®, the carbide head protrudes 5/16" above the tread once properly seated. That figure is consistent across all three thread lengths; it's engineered into the head geometry rather than adjusted at installation.

Do I need to drill holes first?

No. INS Products screw-in studs use Hold-Tite™ threads that self-tap into the lug rubber. No pre-drilling is required, saving installation time and avoiding compromise to the tire's structure.

How many studs does a tire need?

It depends on tire size, lug pattern, machine weight, and operating conditions. Because Gripmasters® use the industry's largest carbide head, you typically need up to 50% fewer studs than traditional methods for comparable traction. Contact INS Products with your machine details for a specific recommendation.

Where exactly should studs go on the tread?

Concentrate on the load-bearing center tread, include outer tread positions for lateral stability, distribute evenly around the circumference, and keep each stud centered within its lug with rubber all around it.

Can I stud a worn tire?

Not advisable. Studs need sound rubber to grip. If lugs are cracked, chunked, or heavily worn, the studs won't retain properly, no matter how well the install is executed.

Will screw-in studs damage pavement?

In normal operation, carbide studs don't cause the surface damage that chains do, one of the main reasons operators working on paved yards and concrete choose studs instead. For primarily paved operation, Roadmasters® are the purpose-built option.

Final Thoughts: Depth, Placement, Spacing In That Order

Screw-in carbide studs reward a methodical install. Measure the lug height and choose the matching thread length. Drive each stud to flush, not past it. Mark the pattern before installing so the spacing stays even and the carbide sits where the tire actually carries the load.

Do those three things, and you get traction that holds consistently throughout the season, without chains, without wrapping, and without downtime.

INS Products carbide studs: solid tungsten carbide tips, Hold-Tite™ threads, no pre-drilling, and proudly made in the USA.
