How to Install Skid Steer Tire Studs for Ice-Packed Job Sites

An ice-packed job site is where a skid steer's strengths turn against it. All that weight over a short wheelbase gives you excellent breakout force on dirt and almost nothing to work with once the surface goes glassy. The machine spins, the bucket won't load, and progress across a frozen yard becomes a series of careful, unproductive attempts.

Carbide tire studs solve this directly, and the install is well within what a mechanic or a capable operator can handle in an afternoon. What matters is doing it in the right order: assess the tires, size the studs to the lugs, plan the pattern before touching a driver, then verify the work before the machine goes back to production.

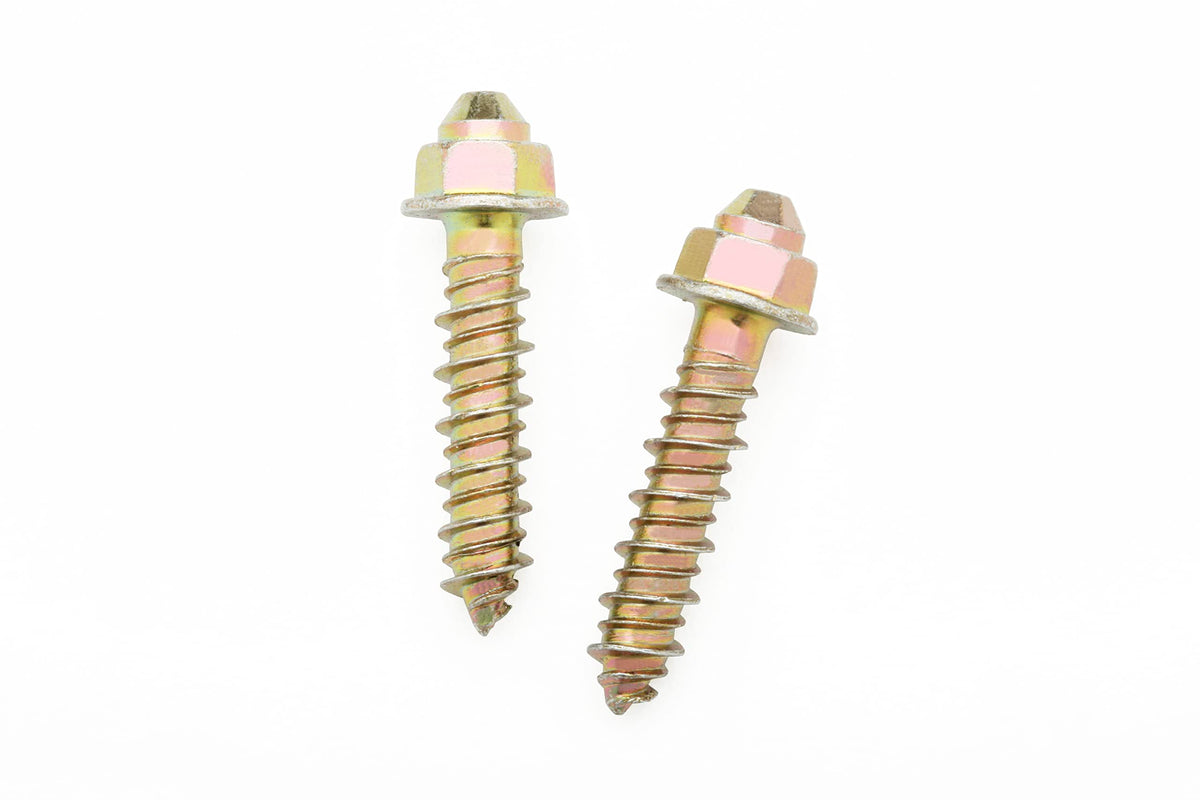

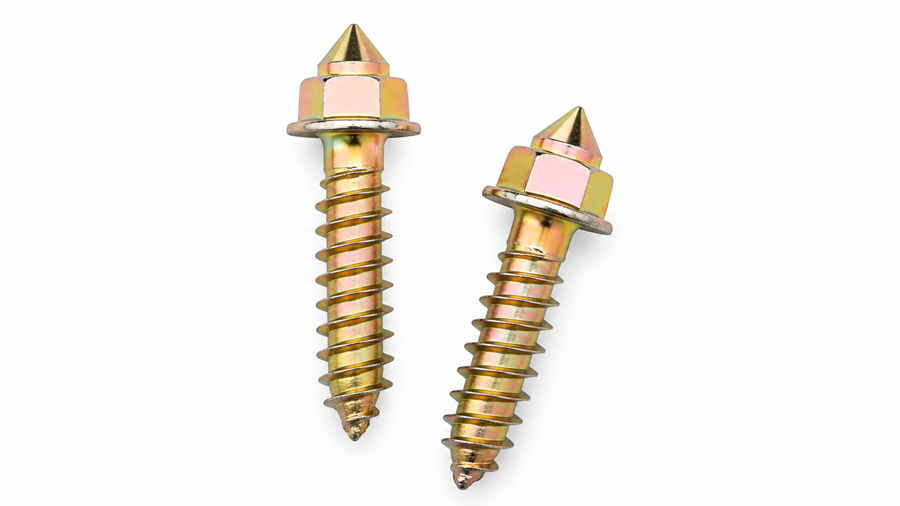

This guide walks through that sequence using INS Products Gripmasters® screw-in carbide studs with Hold-Tite™ threads, no pre-drilling, proudly made in the USA.

Why Skid Steers Lose Traction on Frozen Sites

Understanding the failure mode helps you place studs where they'll actually matter.

A skid steer steers by differential wheel speed; it has to slip to turn. On dirt and gravel, that's fine. On ice-packed hardpack, that designed-in slip becomes an uncontrolled slide, because the surface won't provide the resistance the machine needs to pivot predictably.

Three things compound it:

Weight over a short wheelbase. High ground pressure concentrated over a small footprint. On ice, that pressure polishes the surface further with every pass, making a marginal site progressively worse through the day.

Load transfer under attachment use. Raise a loaded bucket, and the weight shifts forward, unloading the rear tires. Push into a pile, and the machine wants to climb rather than dig. Both scenarios require tires that can maintain grip as the weight distribution shifts.

Lateral instability on grade. Ramps, stockpile approaches, and cambered yards create sideways loading. A machine that slides laterally on ice isn't only unproductive on a slope near a trench, a stockpile, or other equipment; it's a genuine hazard.

Studs address all three by giving the tire something mechanical to bite into rather than relying on rubber friction against a surface that offers almost none.

What You'll Need Before Starting

Gather everything first. Stopping mid-install to source a tool is how patterns end up uneven.

• Carbide studs in the correct thread length quantity confirmed for your tire size

• Hex-head driver or impact driver with the appropriate bit, or the installation tool included with your order

• Ruler or caliper for measuring lug height

• Marker or chalk for laying out the pattern

• Wire brush for cleaning lug surfaces

• Jack and stands, or a lift rated for the machine

• Wheel chocks and standard lockout practice

Set aside enough time to finish all four tires in one session. Studding two tires now and two next week produces mismatched patterns and unbalanced traction, which handles worse than no studs at all, because the operator can't predict what the machine will do.

Follow your machine's service manual for safe lifting and support. Skid steers are heavy and compact; improvised support is not worth the risk.

Step One: Assess the Tires and Size the Studs

Inspect before you commit. Studs need sound rubber. Check each lug for cracking, chunking, dry rot, and separation. If lugs are torn or heavily worn, studs won't retain, no matter how carefully you install them. Address the tire first. Studding a worn-out tire wastes both the studs and the labor.

Clean the lug surfaces with a wire brush. Packed mud, ice, and grit interfere with seating and make it harder to judge when the head is flush.

Measure lug height:

1. Machine on level ground, tire unloaded

2. Pick a lug toward the center of the tread width

3. Rest the ruler flat at the lug base where it meets the tire carcass

4. Measure straight up to the flat lug top, keeping the ruler perpendicular

5. Verify against two or three more lugs

You want the lug's actual height, not the advertised tread depth or the height of a sculpted edge.

Match a thread length to your measurement:

All from $185.00. Choose the length that matches your lug height without exceeding it. Between sizes? Call rather than round up going longer feels safer for grip but isn't safer for fitment.

Whichever length you select, the carbide head protrudes 5/16" above the tread once seated. That's engineered into the head, not something you set by driving deeper.

Step Two: Plan the Pattern Before You Install Anything

This is the step people skip, and it's the one that determines whether the finished job works.

Mark every stud location with chalk before driving a single one. Installing by eye produces clusters and gaps, and once a stud is in, relocating it means an abandoned hole in the lug.

Priorities for a skid steer on ice-packed ground:

Center tread first. The center of the tread width carries most of the contact load on a skid steer tire. Studs here do the most work per stud.

Outer tread for lateral hold. Positions toward the shoulder resist the sideways sliding that makes frozen slopes dangerous. Given how much lateral loading a skid steer generates in normal operation, don't treat shoulder coverage as optional.

Even distribution around the circumference. Carbide should be in contact at every point in the rotation. Clustering leaves dead arcs where the tire has nothing.

Centered within each lug. Every stud needs rubber all around it. Studs near a lug edge have less material holding them and work loose sooner.

Identical on all four tires. Same pattern, same count, every tire.

On quantity: because Gripmasters® use the industry's largest carbide head, each stud covers more ground than conventional studs, typically up to 50% fewer studs for comparable traction. Exact count depends on tire size, lug pattern, and machine weight. Call 585-678-9106 with your tire size for a specific recommendation before ordering; it's a quick call and saves you from reordering.

Step Three: Install

1. Lift and support the machine per its service manual. Chock, lock out, confirm stability.

2. Position the first marked lug where you can drive straight into it with room to work.

3. Start the stud perpendicular to the lug surface. The angle at the start becomes the angle in the finished install, and angled studs bite unevenly.

4. Drive with steady pressure. Hold-Tite™ threads self-tap into the lug rubber, no pre-drilling. Let the threads pull the stud in rather than forcing it.

5. Stop when the head is flush. The flat head should sit flat against the lug with no visible gap. That's the target.

6. Do not overdrive. With a past flush, you're compressing and tearing the rubber that holds the stud. Over-driving causes more loose studs than under-driving does.

7. Rotate and repeat through your marked pattern, then move to the next tire.

Checking your work as you go: heads flush with no gaps, studs perpendicular, carbide protrusion consistent across every stud. Catch a problem at stud five rather than stud fifty.

Full guidance is on the INS Products Installation Instructions page.

Step Four: Verify Before Production Work

Walk all four tires. Confirm every stud is seated, straight, and protruding evenly. Compare tire to tire patterns; they should match.

Low-speed test. Lower the machine and drive slowly on a safe surface. Listen for anything unusual and watch for pulling to one side, which can indicate uneven coverage.

Re-inspect after the first work cycle. Give the machine a shift of real work, then check again. Any stud that's going to seat further or work loose usually shows itself early, and catching one loose stud now is easier than replacing several later.

Then check periodically throughout the season. Add it to routine maintenance alongside fluid and tire pressure checks. Ten minutes occasionally keeps traction consistent.

Gripmasters® or Roadmasters® Match to Your Surface

Which product depends on where the machine actually spends its hours.

Most skid steers working on genuine ice-packed sites want Gripmasters®. If your machine lives on paved surfaces, such as lots and driveways, a snow removal contractor, for instance, Roadmasters® are purpose-built for that. Note they're intended for icy pavement and local surfaces, not high-speed highway use.

Cautions and Common Mistakes

⚠️ BEFORE AND DURING INSTALLATION

• Follow your machine's manual for lifting and support. Never work under an improperly supported skid steer.

• Inspect lug condition first. Cracked, chunked, or dry-rotted lugs won't hold studs.

• Never exceed measured lug height when selecting thread length.

• Flush is the target. Overdriving damages the rubber that retains the stud.

• Keep studs perpendicular to the tread surface.

• Stud all tires in one session with matching patterns.

• Re-inspect after the first work cycle, then periodically.

• Avoid extended bare-pavement running with all-terrain studs  it wears carbide without traction benefit.

Five mistakes worth avoiding:

1. No measurement. Ordering by machine model instead of measured lug height puts the wrong length on the shelf.

2. No pattern marking. Eyeballing placement reliably produces uneven spacing.

3. Over-driving. The leading cause of studs working loose.

4. Studding worn tires. Sound rubber is a prerequisite, not a nice-to-have.

5. Mismatched tires. Different patterns on different corners produce handling that the operator can't anticipate under load.

Frequently Asked Questions

Can you put carbide studs on skid-steer tires?

Yes. Gripmasters® install directly into the rubber lugs of pneumatic skid steer tires. Hold-Tite™ threads self-tap into the lug without pre-drilling, and the wide, flat head resists pull-through under the loads generated by a working machine.

How long does it take to stud a skid steer?

Plan an afternoon for all four tires, including prep, measurement, pattern marking, and verification. Marking the pattern takes real time, but it is what makes the finished job work.

How many studs per skid steer tire?

It depends on tire size, lug pattern, and machine weight. Gripmasters® typically need up to 50% fewer studs than traditional methods, thanks to the larger carbide head. Contact INS Products with your tire size for a specific figure.

Are studs better than chains for a skid steer?

For ice-packed and mixed-surface sites, generally yes: better lateral stability, no pavement damage, faster to install, and they work on tracked machines too. Chains still have an argument in deep, loose snow where coverage matters more than bite.

Will studs damage the tire?

Not when correctly installed. Damage comes from wrong thread length, over-driving, or studding rubber that was already compromised, not from the stud itself.

Do these work on compact track loaders?

Yes. Gripmasters® install into rubber track lugs the same way as pneumatic tires, which is unusual in this product category. Same sizing principle: measure lug height, match thread length.

Final Thoughts: Prep Determines the Outcome

The installation itself is not difficult. Driving a stud takes seconds. What separates a job that holds all winter from one with loose studs by February is everything that happens first: inspecting the lugs, measuring properly, marking the pattern, and verifying before the machine goes back to production.

Do that groundwork, and your skid steer keeps working through frozen conditions that would otherwise cost you days.

INS Products carbide studs: solid tungsten carbide tips, Hold-Tite™ threads, no pre-drilling, proudly made in the USA.
